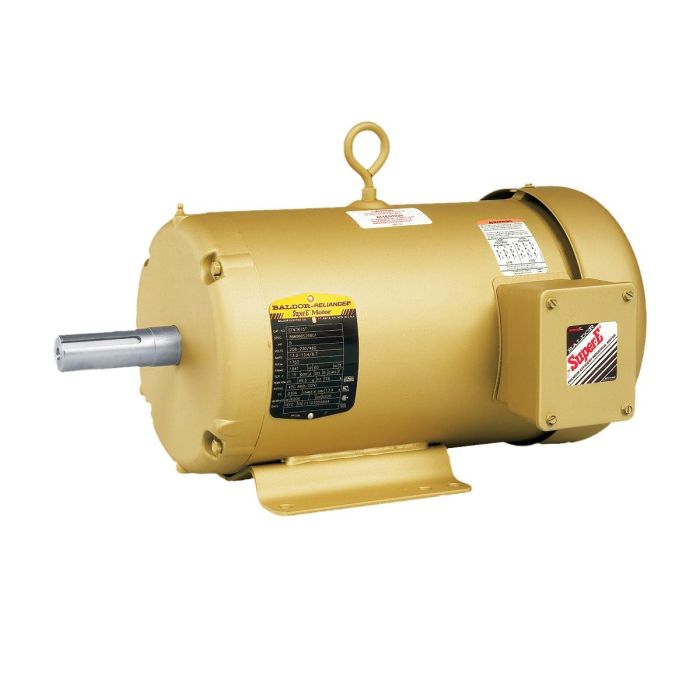

GS60 - 7.5HP Motor - EMM3710

<p>5.5KW,1770RPM,3PH,60HZ,D132S,3736M,TEFC</p>
<p>SPEC. NUMBER:&nbsp;37E617T859G1</p>
<p>CATALOG NUMBER:&nbsp;EMM3710FL</p>
<p>AMPS:&nbsp;21-18.8/9.4208V AMPS:&nbsp;21</p>
<p>BEARING-DRIVE-END:&nbsp;6208</p>
<p>BEARING-OPP-DRIVE-END:&nbsp;6206</p>
<p>DESIGN CODE:&nbsp;A</p>
<p>DOE-CODE:&nbsp;010AFL</p>
<p>EFFICIENCY:&nbsp;91.7ENCLOSURE:&nbsp;TEFC</p>
<p>ENCLOSURE-INGRESS-PROT:&nbsp;54FRAME:&nbsp;D132S</p>
<p>HERTZ:&nbsp;60</p>
<p>INSULATION-CLASS:&nbsp;F</p>
<p>KVA-CODE:&nbsp;J</p>
<p>SPEED [rpm]:&nbsp;1770</p>
<p>OUTPUT [hp]:&nbsp;5.5KW</p>
<p>PHASE:&nbsp;3</p>
<p>RATING:&nbsp;40C AMB-CONT</p>
<p>SERIAL-NUMBER:&nbsp;--</p>
<p>SERVICE FACTOR:&nbsp;1.15</p>
<p>VOLTAGE:&nbsp;208-230/460</p>
