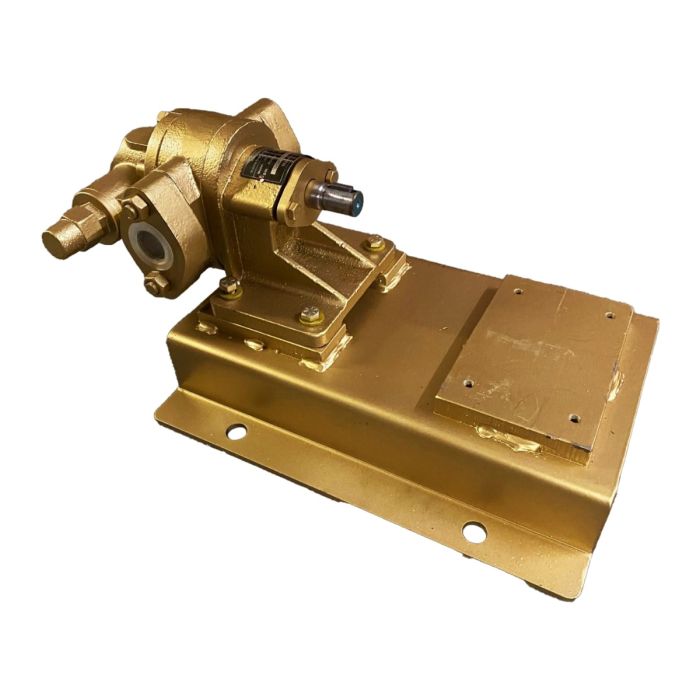

GS18 Gear Pumphead - 18gpm with baseplate
About
The ultimate heavy-duty transfer pump for heavy gear oils, waste motor oil, and diesel. Built for life, not the landfill.
- Flow Rate: True 18 GPM flow capacity.
- Premium Motor: Custom X HP US-Made Baldor Motor (120V).
- Built to Last: Fully serviceable cast-iron pump head with high-temp Viton seals.
Features
- Self-Priming - Suction height of 15ft
- Pressure Relief
- solid cast iron Construction - Carbon steel gears
- High quality - 1.5HP motor that can run on 120V/220V
how they work
Twin rotary gears are set in the pump body. One is active, the other is passive. Active gear drives passive gear to rotate when pump works. As gear teeth unite then sever, vacuum/suction is created in pre-chamber. Liquid fills the gear cavities and is pushed at high pressure out from the chamber.
Safety Relief Valve
Safety valve is set from factory. Safety valve is automatically opened when pump or output piping receive excess pressure. Once valve opens, pressure and oil is routed back to the inlet chamber and re-circulated through the pumphead. Not for use with corrosive liquids. Oil Only!
Technical Specifications
| Performance Metric | Specification |
|---|---|
| Flow Rate | 15 GPM @ 1800 RPM |
| Pressure Relief | 0.33 Mpa |
| Shaft Size | 20mm |
| Port Size | 1" NPT |
| Motor Output | 1.5HP (120/220V Compatible) |
