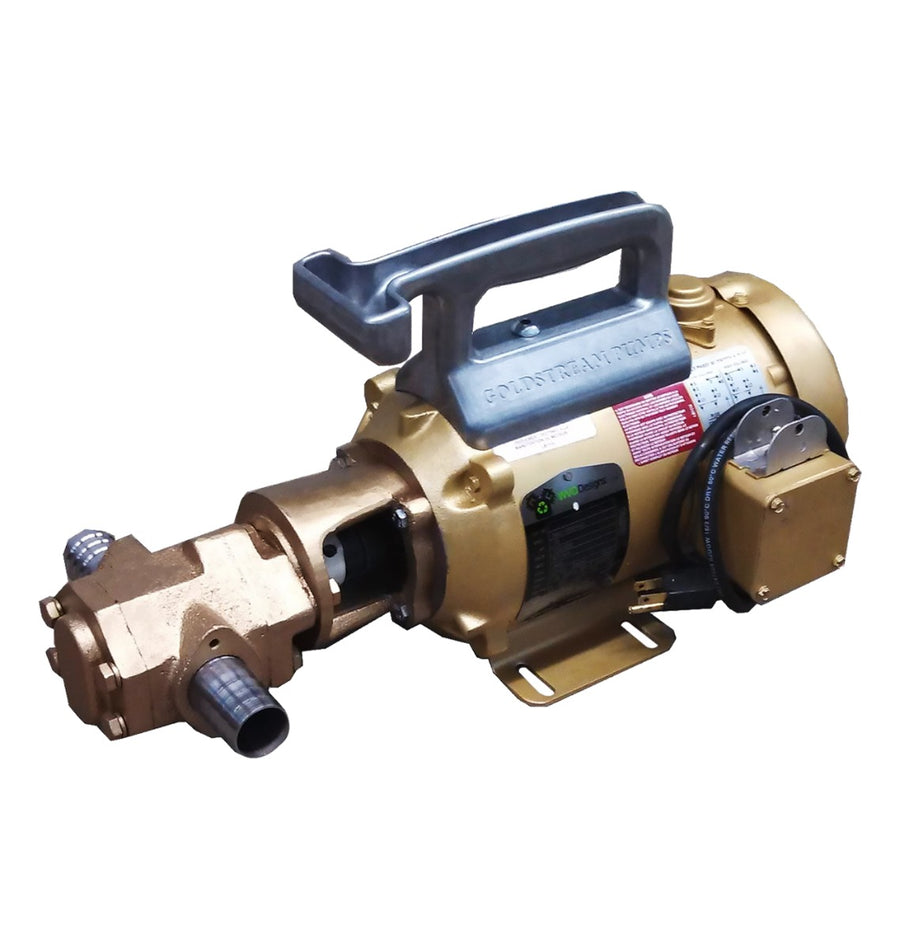

Monster 25 GPM Portable Pump - 3/4hp, 120/230V 60HZ

The Monster 25 GPM Portable Pump is built for speed. At 3450 RPM with a 3/4HP Baldor motor, it moves light viscosity oils at 25 GPM. Vegetable oil, fuel oil, motor oil, and similar fluids transfer fast. Plug it in, pick it up by the handle, and pump.

This unit pairs the GSM25 cast iron pumphead with a custom US Made Baldor motor wound for 3450 RPM. The higher RPM doubles the flow rate compared to the 12 GPM configuration, making this the right choice when throughput matters and the fluid is light enough to move at speed. It comes pre wired with a heavy duty switch and power cord and ships with a carry handle. No additional wiring or assembly required.

The GSM25 Pumphead

The GSM25 is a direct drive, cast iron, positive displacement gear pumphead with helical cut steel gears. It is self priming, delivers fast and pulseless fluid transfer, and relies on the fluid itself for internal gear lubrication. Viton seals provide compatibility with vegetable oils, light gear oils, and other low viscosity fluids.

The Motor

Custom US Made Baldor motor, 3/4HP, 3450 RPM, 120/230V 60Hz. Pre wired with a heavy duty switch and 2.5 ft power cord. Ships wired for 120V, rewirable for 230V.

Specifications

• SKU: W2066
• Pumphead: GSM25 Cast Iron Positive Displacement Gear Pump
• Motor Speed: 3450 RPM
• Flow Rate: 25 GPM
• Self Priming: Yes
• Port Size: 1 inch NPT Inlet and Outlet
• Seals: Viton (high temp)
• Motor: 3/4 HP, 120/230V 60Hz
• Wiring: Pre wired with heavy duty switch and power cord
• Handle: Included
• Viscosity: Light viscosity oils

What's in the Box

• GSM25 Cast Iron Gear Pumphead
• US Made Baldor Motor (3/4 HP, 3450 RPM)
• Three piece shaft coupler with rubber element
• Heavy duty Carry Handle
• Two (2) 1 inch NPT to 1.25 inch Hose Barbs

Note: Hoses and wands are sold separately.
