About

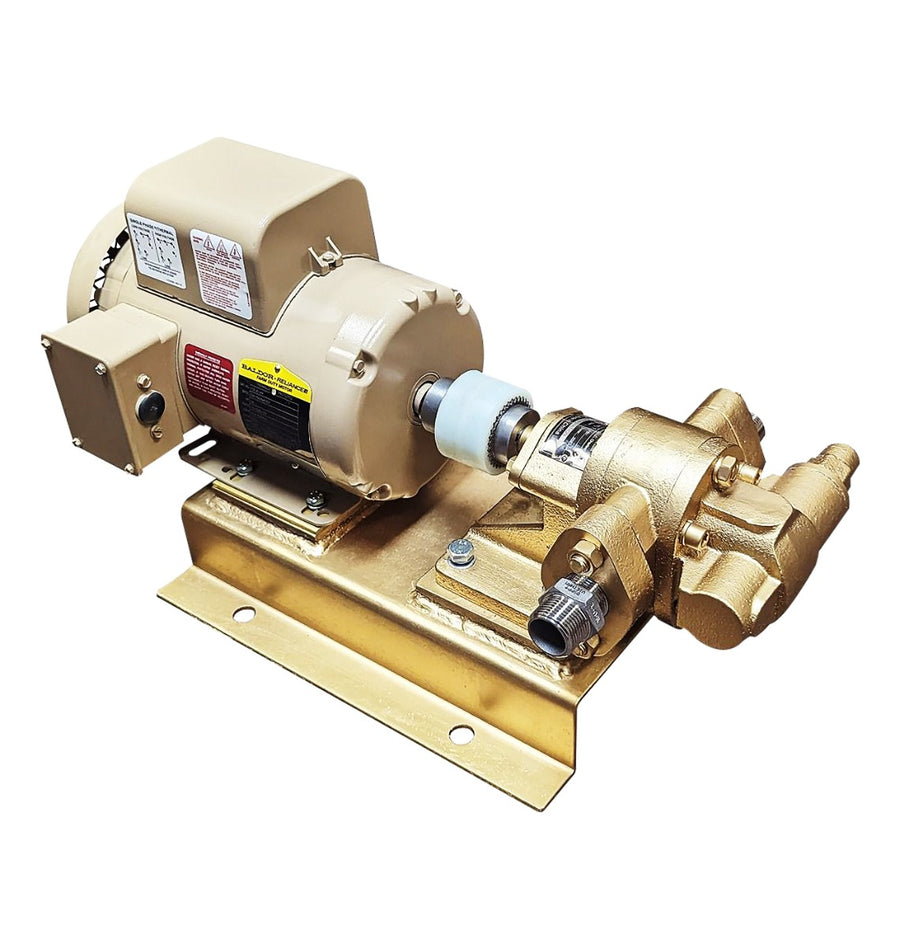

A modular, heavy-duty fluid transfer system pairing our flagship positive displacement pumphead with an industrial-grade US-Made Baldor motor.
- The Pumphead: Industrial positive displacement pumphead with integrated pressure relief (12 GPM). Self-priming.
- The Motor: Stock US-Made Baldor Motor (1.5hp, 1200 RPM, 230/460V 3-Phase).
- Drive System: Includes three-piece shaft coupler with rubber element.
- Out of the Box: Designed for stationary processing applications. Requires custom hardwiring.
The ultimate heavy-duty transfer system. We pair our flagship cast-iron positive displacement pumphead with an industrial-grade US-made Baldor motor for continuous fluid processing of specialized applications at a reliable 12 GPM.
Engineered to provide a truly robust, high-volume transfer solution, the Industrial Processing Series is built modularly. By combining a dedicated, heavy-duty fluid pumphead with an industrial-grade electric motor, we've created a self-priming, continuous-duty system built to excel in demanding environments and optimized for specific fluid applications.
The Heart + The Muscle (Our Modular Philosophy)
Our pumps are designed as true fluid transfer systems by pairing a specialized pumphead (The Heart) with a powerful electric motor (The Muscle). This allows us to create the perfect tool tailored for your specific viscosity and application needs.
Component 1: The Pressure-Relief Pumphead
At the heart of the system is our industrial cast-iron positive displacement gear pumphead featuring an integrated pressure relief valve. Designed specifically for processing applications, this inherently self-priming head prevents deadheading when pushing fluids through restrictions like filtration systems, centrifuges, or long plumbing runs.
Component 2: The Electric Motor
Because moving thicker fluids efficiently requires substantial torque, we match the pumphead with a power plant built to handle the load. This bare pump assembly features a Stock US-Made Baldor Motor. It is shipped without a handle or wiring, providing an excellent foundation for hardwiring the pump into a custom skid, processing system, or existing shop infrastructure.
Motor Specifications
| Motor Feature | Specification |
|---|---|
| Part Number | Stock Baldor TEFC* |
| Horsepower | 1.5hp |
| Operating Speed | 1200 RPM |
| Voltage | 230/460V 3-Phase |
| Wiring / Controls | None. Motor must be hardwired by user. |
| Frame Size | NEMA 56C |
System Performance Specifications
- System Flow Rate: 12 GPM
- Pump Design: Positive Displacement Gear Pump
- Self-Priming: Yes
- Port Size: 1" NPT Inlet / Outlet
What’s Included in the Box
- Industrial Pressure-Relief Pumphead
- US-Made Baldor Electric Motor (1.5hp)
- Three-piece shaft coupler with rubber element
- Industrial Baseplate
- Two (2) 1" NPT to 1.25" Hose Barbs
Note: Hoses and wands are sold separately. This unit is specifically configured for 3-Phase industrial power environments.
FAQs
Product & Usage
1. Are Goldstream pumps built for professional use?
Yes. Every Monster Series and Industrial Series pump is built for continuous duty, marine environments, and the kind of fluid-transfer work that breaks cheaper pumps.
2. Can I use a Goldstream pump for my home project?
Absolutely. Our Monster Series is portable and self-priming — no tuning or tricks needed. Plug it in and move fluid.
3. Can Goldstream pumps be used in marine or outdoor conditions?
Yes. Goldstream pumps are tested in real-world marine, biofuel, and industrial conditions — heat, humidity, and long runtimes.
Maintenance & Accessories
1. What maintenance does a Goldstream pump need?
Flush with a compatible fluid after each use and keep seals clean. That's it — our gear pumps are built to run with minimal fuss.
2. Can I buy replacement parts?
Yes. Seals, impellers, gaskets, and full rebuild kits are in stock at the Pump Parts collection.
3. Do you provide installation guides?
Every pump ships with a printed install guide. Digital copies and install videos are linked from each product page.
Warranty & Guarantee
1. Do Goldstream pumps come with a warranty?
Every Goldstream pump is backed by our 1-year limited warranty against defects in materials and workmanship, when used with approved oil-based fluids.
2. How do I register my pump for warranty coverage?
Keep your order confirmation email — it acts as proof of purchase. You can also register your serial number in your account for faster service.
3. What does the warranty cover?
Defects in materials and workmanship under normal use — no fine print, no games. Wear items (seals, gaskets) are covered by a separate 1-year warranty.
4. What if my pump fails?
Call us. We'll get you a replacement or rebuild fast — usually the same week.
Purchasing & Support
1. How fast is shipping and delivery?
Most orders ship same-day from Charleston, SC, with delivery in 2–5 business days anywhere in the continental US.
2. Do you offer bulk or corporate purchasing options?
Yes. Goldstream offers dealer and fleet pricing — call us at (843) 972-4211 or use the contact form.
3. How can I reach a real technician?
Call (843) 972-4211 Mon–Fri, 8am–3pm EST, or email support@goldstreampumps.com. No call centers.
