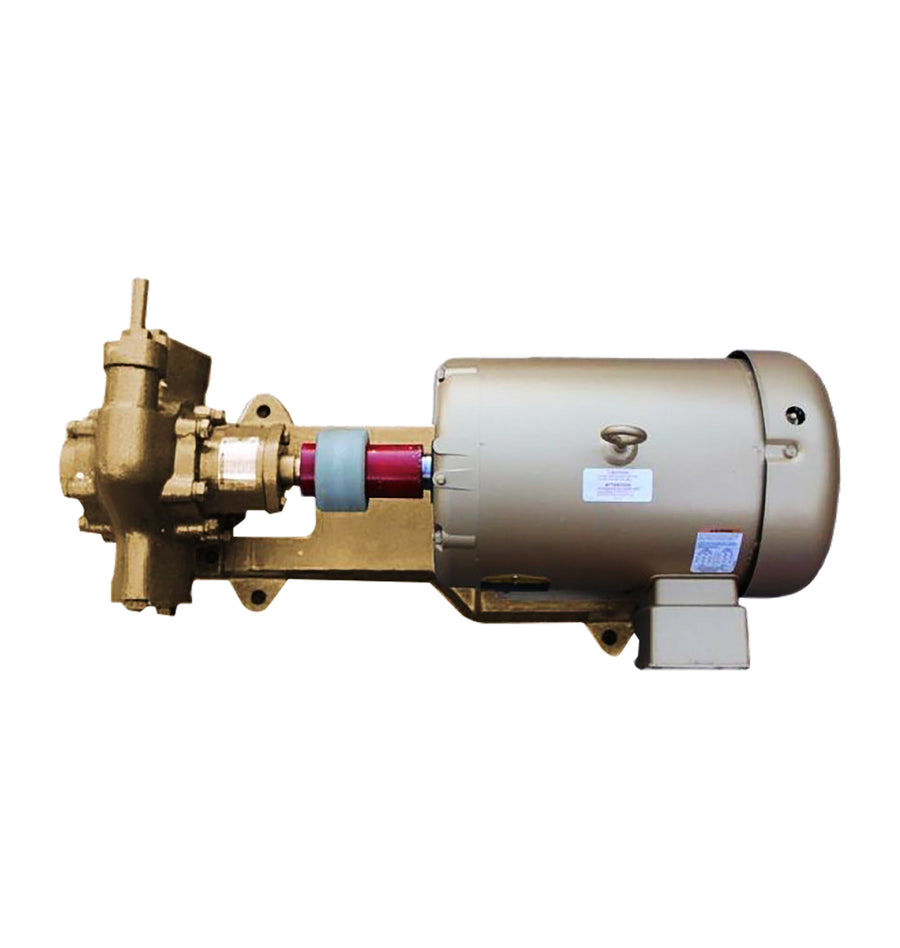

Industrial 60gpm Goldstream Oil Transfer Pump 7.5hp motor

Fixed mount, continuous duty, 60 GPM. The high volume unit in the Goldstream stationary lineup. Pairs a cast iron gear pumphead with an adjustable pressure relief valve and a 7.5HP Baldor motor at 1770 RPM on 3 Phase power. Built for high throughput processing applications where the outlet may be restricted.

The pressure relief valve recirculates fluid internally when outlet pressure exceeds the set point, protecting the pump and motor from deadhead damage. Safe to run against filters, centrifuges, and partially restricted outlets. Ships unwired. No handle, no switch, no plug.

The Pumphead

Cast iron positive displacement gear pump with adjustable pressure relief valve. Self priming with 15 ft suction height. Continuous duty rated. Carbon steel gears, Viton seals. Flexible coupling connects motor drive to pump shaft.

The Motor

Baldor Premium Efficient motor, EMM3710, 7.5HP (5.5KW), 1770 RPM, 3 Phase, 60Hz, IEC 132 frame. Ships unwired. Requires hardwiring by a qualified electrician into a 3 Phase power source.

Specifications

• Pumphead: Industrial Cast Iron Positive Displacement Gear Pump with Adjustable Pressure Relief
• Motor Speed: 1770 RPM
• Flow Rate: 60 GPM
• Self Priming: Yes
• Suction Height: 15 ft
• Pressure Relief: Yes, adjustable, recirculating
• Seals: Viton (high temp)
• Duty Cycle: Continuous
• Motor: 7.5 HP (5.5KW), 3 Phase, 60Hz, IEC 132 Frame
• Motor Model: Baldor EMM3710
• Wiring: None, ships unwired
• Mount: Fixed, includes industrial baseplate

What's in the Box

• Industrial Cast Iron Gear Pumphead with Adjustable Pressure Relief Valve
• Baldor Premium Efficient Motor (7.5 HP, 1770 RPM, 3 Phase)
• Three piece shaft coupler with rubber element
• Industrial Baseplate

Note: Hoses and wands are sold separately. No switch, plug, or handle included. Requires hardwiring by a qualified electrician into a 3 Phase power source.

Download Baldor EMM3710 Motor Info Packet
